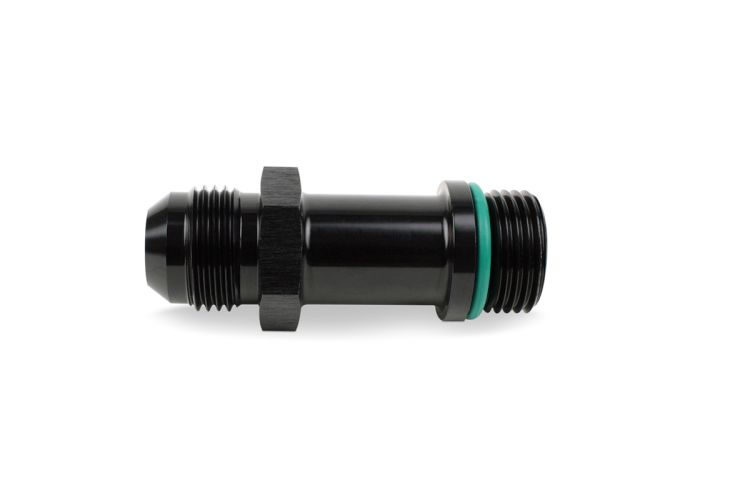

RaceFlux -6AN O-Ring Boss to -6AN Male Flare Extension Fitting
$9.90
In stock
Ships Tomorrow
Ships Tomorrow
Part #
OME-06
Part # OME-06
This fitting provides a 1" extension compared to a standard RaceFlux ORB to AN Male fitting. Great for recessed locations where access is otherwise difficult, or for extending a fitting for extra reach.
The larger 13/16" hex provides room to counter-hold the fitting during hose installation.
Features and Benefits
-
Male straight AN thread O-Ring Boss (ORB) fitting with Viton o-ring, to male AN/JIC flared 37-degree thread, with 1" extension.
-
Compliant with SAE J1926-1 / MS16142 as well as SAE AS5202 / MS33649.
-
Reusable.
-
Lightweight black anodized construction.
| Part # | OME-06 |
|---|---|
| Brand | RaceFlux |
| Color | Black |
| Primary Material | Aluminum |
| Finish | Type II Anodized |
| Size | -6AN O-Ring to -6AN Male |
| Size | -6 Male ORB to -6 Male AN Flare |
| Fitting Angle | Straight |
| Connection Type | AN Flare 37º JIC O-Ring Boss |
| Connection A Type | O-Ring Boss |
| Connection A Size | -6 |
| Connection A Gender | M |
| Connection B Type | AN Flare 37º JIC |
| Connection B Size | -6 |
| Connection B Gender | M |
| Maximum Operating Temperature | 302°F (150°C) |
| Minimum Operating Temperature | -30°F (-34°C) |
| Maximum Operating Pressure | 1000 psi (68.94 bar) |
| O-Ring Material | FKM (Viton) |
| Swivel | None on installation only |
| Applications | Breather and vent lines Fuel (in-tank) Fuel (outside of tank) Gauge and sensor lines High temperature applications Hydraulics: low pressure (return lines) Vacuum lines Coolant & water lines Other oil water and air systems |
| Fluid Compatibility | Air Alcohol Coolants Diesel Fuels Engine oil Ethanol-based fuels (E85+) Ethanol/gasoline mixtures Gear oil Methanol Nitrous Oxide Power Steering Fluid Racing fuels Transmission fluid Vacuum Water |
| Standards & Certifications | AN Threads & 37° Flares per SAE AS4395 Anodizing per ISO 7599 O-Ring Boss Threads per SAE J1926-3 & ASME B1.1 O-Ring Boss Threads per SAE AS5202 |
