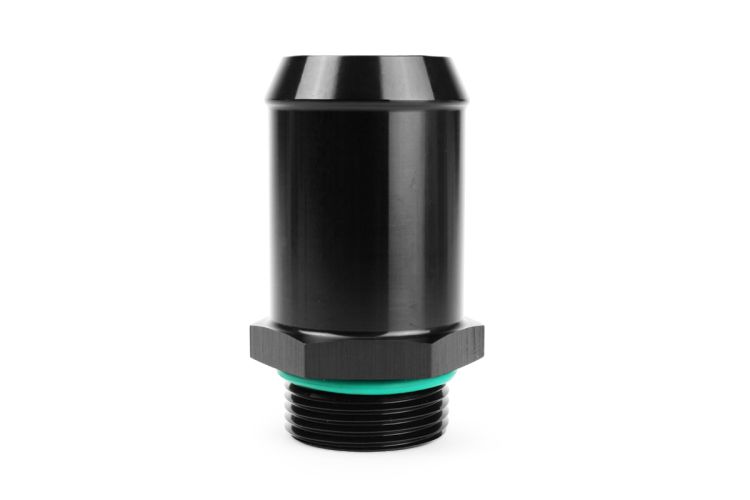

RaceFlux 1.5" Hose Barb to -16AN O-Ring Adapter Fitting
$14.90
In stock
Ships Today
Ships Today
Only 1 left
Part #
OB-16-24
Part # OB-16-24
RaceFlux's aluminum AN fittings were designed specifically for use in motor sports where maximum fluid flow and reliability are paramount. The fittings are reusable and their black anodized finish offers a fresh, stealthier look over traditional red and blue fittings.
Features and Benefits
- Male AN straight thread O-Ring Boss (ORB) fitting with Viton O-ring to 1.5" hose barb
- Compliant with SAE J1926-1 / MS16142, SAE AS5202 / MS33649, and SAE J2552
- Short hex height to maximize install clearance
- Reusable
- Lightweight black anodized aluminum construction
- Lifetime manufacturer's warranty
| Part # | OB-16-24 |
|---|---|
| Brand | RaceFlux |
| Compatible Fittings | B (Smooth Barb) |
| Compatible Hose | PH (Push-Lock) |
| Color | Black |
| Finish | Type II Anodized |
| Size | 1.5" Barb to -16AN O-Ring |
| Fitting Angle | Straight |
| Connection Type | Hose Barb Smooth O-Ring Boss |
| Connection A Type | Hose Barb Smooth |
| Connection A Size | 1-1/2" |
| Connection A Gender | M |
| Connection B Type | O-Ring Boss |
| Connection B Size | -16 |
| Connection B Gender | M |
| Maximum Operating Temperature | 302°F (150°C) |
| Minimum Operating Temperature | -30°F (-34°C) |
| Maximum Operating Pressure | 1000 psi (68.94 bar) |
| Swivel | None on installation only |
| Standards & Certifications | O-Ring Boss Threads per SAE AS5202 |
