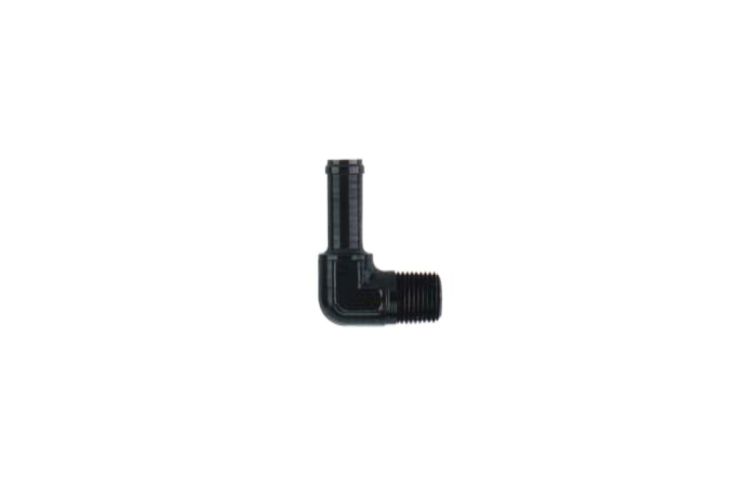

RaceFlux 90-Degree 1/4'' Hose Barb to 1/8'' Male NPT Adapter Fitting
$7.90
Out of stock
In stock by Thu, Feb 12
In stock by Thu, Feb 12
Part #
BP-090-04-02
Part # BP-090-04-02
RaceFlux's aluminum AN fittings were designed specifically for use in motor sports where maximum fluid flow and reliability are paramount. The fittings are reusable and their black anodized finish offers a fresh, stealthier look over traditional red and blue fittings.
Features and Benefits
- Compliant with SAE J1926-1 / MS16142, SAE AS5202 / MS33649, and SAE J2552
- Short hex height to maximize install clearance
- Reusable
- Lightweight black anodized aluminum construction
- Lifetime manufacturer's warranty
| Part # | BP-090-04-02 |
|---|---|
| Brand | RaceFlux |
| Compatible Fittings | B (Smooth Barb) |
| Compatible Hose | PH (Push-Lock) |
| Color | Black |
| Primary Material | 6061-T6 aluminum |
| Finish | Type II Anodized |
| Size | 1/4" Barb to 1/8" NPT |
| Fitting Angle | 90° |
| Connection Type | Hose Barb Smooth NPT |
| Connection A Type | Hose Barb Smooth |
| Connection A Size | 1/4" |
| Connection B Type | NPT |
| Connection B Size | 1/8" |
| Connection B Gender | M |
| Maximum Operating Temperature | 302°F (150°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Pressure | 3500 psi (241.32 bar) |
| Swivel | None on installation only |
| Applications | Breather and vent lines Fuel (in-tank) Fuel (outside of tank) Gauge and sensor lines High temperature applications Hydraulics: low pressure (return lines) Vacuum lines Coolant & water lines Other oil water and air systems |
| Fluid Compatibility | Air Alcohol Brake Fluid Coolants Engine oil Ethanol-based fuels (E85+) Ethanol/gasoline mixtures Gear oil Methanol Nitromethane Nitrous Oxide Power Steering Fluid Racing fuels Transmission fluid Vacuum Water |
| Standards & Certifications | Anodizing per ISO 7599 |
