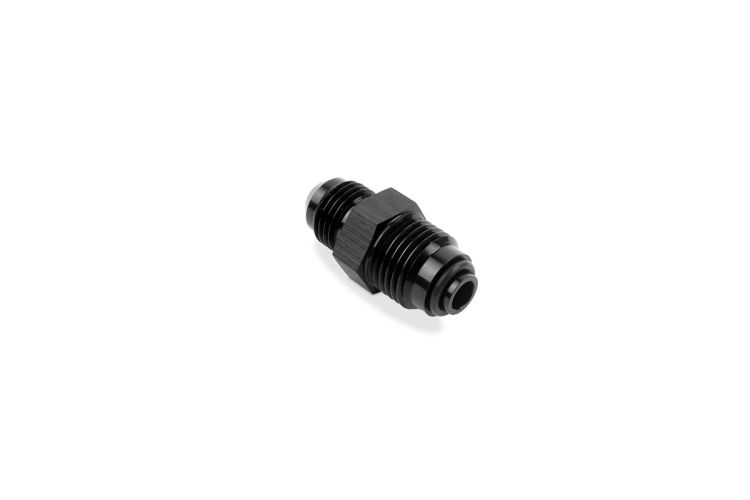

RaceFlux -6AN Male Flare to M16x1.50 Bump Tube Adapter
$9.90
In stock
Ships by Mon, Jan 19
Ships by Mon, Jan 19
Part #
M-BT-06-M16
- Direct adapter to convert Power Steering Bump Tube ports (e.g., pumps, reservoirs) to standard AN Male Flare.
- Essential for Motorsport/Engine Swaps when upgrading to high-performance AN power steering lines.
- Positive, leak-free sealing on both the pump connection and the 37° AN hose end.
- Lightweight, high-strength 6061-T6 Aluminum construction.
Part # M-BT-06-M16
This high-performance adapter converts the proprietary Power Steering Bump Tube port—a specialized, often barbed connection found on certain pumps/reservoirs—into a standard, secure AN Male Flare connection. Constructed from anodized 6061-T6 aluminum, it provides a robust, leak-free solution for integrating custom AN plumbing.
Directly adapts the bump tube outlet for use with AN hoses.
Ideal for Motorsport, Off-Road, and Custom Engine Swaps where upgrading to high-pressure, high-flow AN power steering lines is required. Eliminates the need for welding or complex hose-clamped connections on the pump or reservoir.
| Part # | M-BT-06-M16 |
|---|---|
| Brand | RaceFlux |
| Color | Black |
| Primary Material | Aluminum |
| Finish | Type II Anodized |
| Size | N/A |
| Size | -6 Male AN Flare to M16x1.50 Male Bump Tube |
| Fitting Angle | Straight |
| Connection Type | AN Flare 37º JIC Bump Tube |
| Connection A Type | AN Flare 37º JIC |
| Connection A Size | -6 |
| Connection A Gender | M |
| Connection B Type | Bump Tube |
| Connection B Size | M16x1.50 |
| Connection B Gender | M |
| Maximum Operating Temperature | 302°F (150°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Pressure | 1000 psi (68.94 bar) |
| O-Ring Material | FKM (Viton) |
| Swivel | None on installation only |
| Applications | High pressure applications Hydraulics: high pressure (clutch - power steering - etc) Hydraulics: low pressure (return lines) Coolant & water lines |
| Fluid Compatibility | Air Alcohol Coolants Diesel Fuels Engine oil Ethanol-based fuels (E85+) Ethanol/gasoline mixtures Gear oil Methanol Nitrous Oxide Power Steering Fluid Racing fuels Transmission fluid Vacuum Water |
| Standards & Certifications | AN Threads & 37° Flares per SAE AS4395 Anodizing per ISO 7599 |
